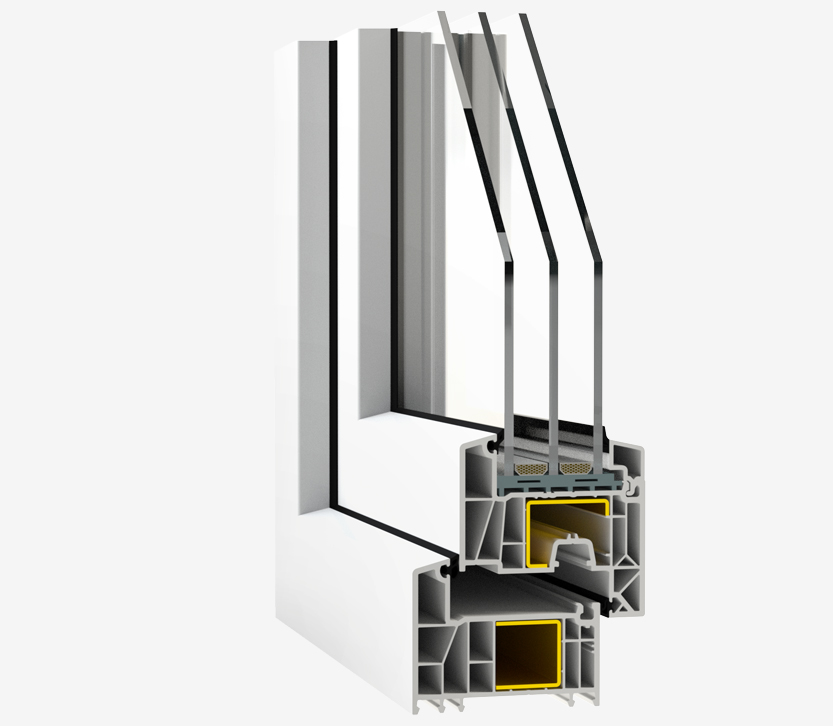

Profile in the DECCO 82 system is the perfect choice for those who are looking for the highest thermal parameters that meet new building requirements, excellent design at a reasonable price.
Uw 0,76 W/m2K | 6 chamber | 81 mm wide | 2 gaskets
The advantages of profile
- 6-chamber system with the installation width of 81 mm
- Possibility of application of many kinds of glass packages with the thickness from 23 mm to 54,8 mm
- Extended reinforcement chambers to increase window stiffness and enable execution of all correctly designed structures
- Optimum profile assembly height providing up to 5% more light in comparison with other systems in the same class (in two-leaf window with the dimensions of: width 1,465 mm height 1,435 mm)
- B class profiles in accordance with the standard PN-EN 12608: -1:2016- 1:2016-04
- Perfect thermal insulation. Uw = 0,76 W/m2K for the reference window with width 1230 mm, height 1480, with 48 mm glazing unit and SWISSPACER V distance frame
- In this system it is possible to apply the technology of pasted panes, which enables creation of oversize structures
- Possibility of application of polystyrene insert
- Contains complete door system
- Grey or black gaskets
- Wide range of decorative foils.
Variants
2-glass package
24 mm Ug 1,0/Wm2K
spacer bar SWISSPACER V, argon
3-glass package
48 mm Ug 0,5/Wm2K
spacer bar SWISSPACER V, argon
4-glass package
52 mm Ug 0,3/Wm2K
spacer bar SWISSPACER Ultimate, krypton
