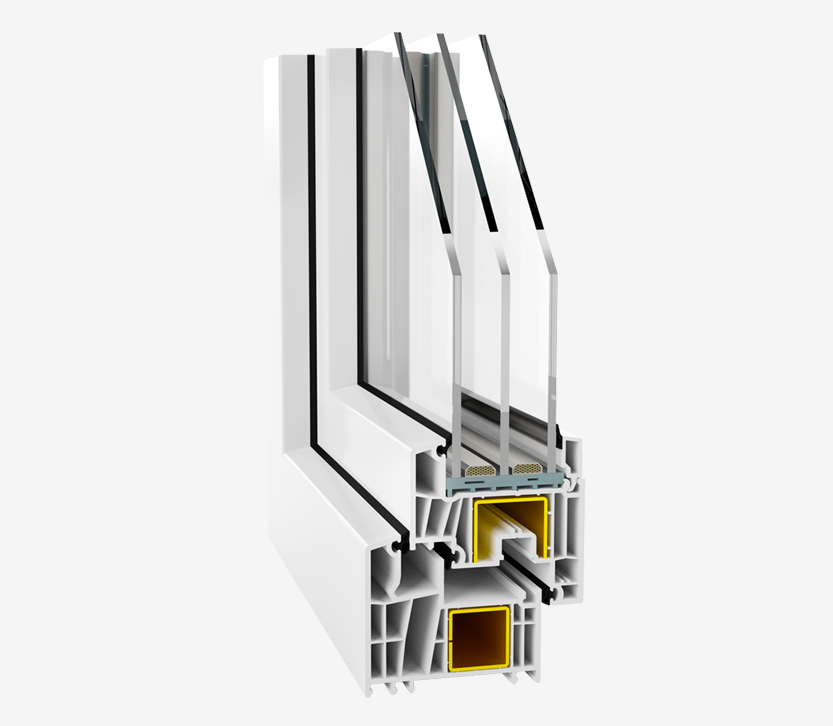

DECCO 83 is a profile with extreme thermal parameters. The third seal and wide glass units with a warm frame makes this profile unrivalled in the market.

Uw 0,59 W/m2K | 7 chamber | 81 mm wide | 3 gaskets

The advantages of profile

  • 7-chamber system with an installation width of 81 mm, with a third, central gasket
  • The applicability of many types of glazing units with a thickness of 23 mm to 54,8 mm
  • Extended reinforcement chambers, increasing the rigidity of the windows and allowing the production of all properly designed structures
  • The optimum height of the assembly of the profiles which gives up to 5% more light compared to other systems in its class (two-wing windows with width of 1465 mm, height of 1435 mm)
  • Excellent thermal insulation: Uw = 0,59 W/m2K of the reference window with width 1230 mm, height 1480, with 52 mm glazing unit 4/12/4/12/4/12/4 kryp. o Ug=0.3 W/m2*K with SWISSPACER ULTIMATE frame and a thermal pad in the frame
  • Contains transition profiles for large sliding and balcony doors
  • In this system, it is possible to use glued glazing technology, which increases the stability of windows and allows for larger constructions
  • The possibility of the use of thermal pads
  • A wide range of decorative foils

Variants

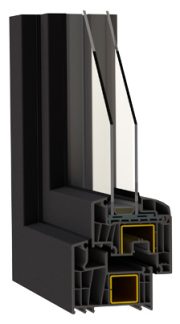

2-glass package
4/16/4 | 24 mm Ug 1,0/Wm2K, spacer bar SWISSPACER V,
argon

wi-83-b11111

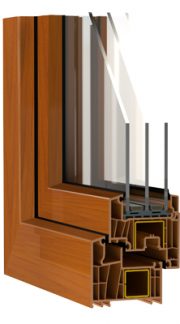

3-glass package
4/18/4/18/4 | 48 mm Ug 0,5/Wm2K, spacer bar SWISSPACER V, argon

wi-83-b222222

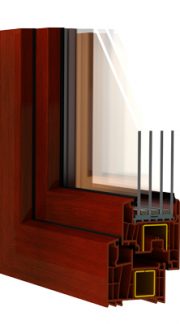

4-glass package
4/12/4/12/4/12/4 | 52 mm Ug 0,3/Wm2K, spacer bar SWISSPACER Ultimate, krypton

wi-83-b3333333
